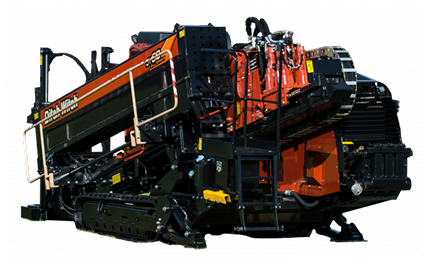

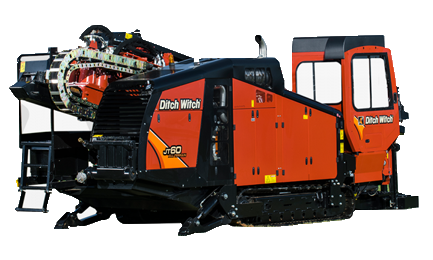

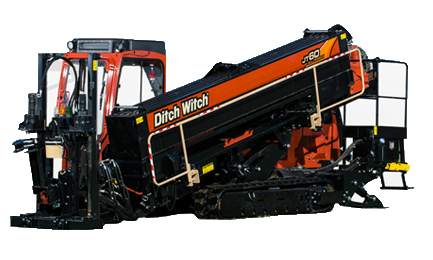

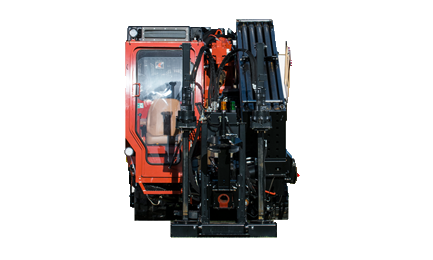

JT60 ALL TERRAIN DIRECTIONAL DRILL
View Video » Download the JT60 ALL TERRAIN DIRECTIONAL DRILL Brochure »

Every Ditch Witch All Terrain directional drill stands apart from competitors by virtue of its patented, two-pipe All Terrain drilling system, which delivers more power to the bit than any other rock-drilling system in its class, resulting in unbeatable productivity in the widest range of ground formations. With the JT60 All Terrain, you also get a uniquely powerful combination of rotational torque, thrust and pullback, plus intuitive carve mode and many other features requested specifically by customers.

Basic Specifications

  • Engine: 200hp Cummins
  • Pullback: 17,900kgs
  • Rotational Torque (Outer): 5,000ft/lbs
  • Rotational Torque (Inner): 2,000ft/lbs
  • Spindle Speed (Outer): 240rpm
  • Spindle Speed (Inner): 250rpm
  • Mud Pump: 120gpm
  • Industry-exclusive, patented two-pipe drilling system provides more power to the bit than any other rock-drilling system in its class and is the only technology to enable simultaneous drilling and steering through rock and hard soil conditions.
  • The inner pipe works as a mechanical motor that drives the bit during the bore; the outer pipe thrusts the bit forward and steers the drill shaft. During backreaming, the outer pipe transmits full machine torque downhole.
  • The Ditch Witch All Terrain technology enables rock drilling with very low fluid flow. Less fluid volume means less waste, less cleanup and less environmental impact.
  • With its variable rotary drive, the JT60 All Terrain matches exact spindle speed and torque to power through varying ground formations.
  • 26,785kgs thrust and pullback with 9,000 ft·lb (12240 N·m) rotational torque—the powerful combination you need for outstanding productivity on big installation jobs.
  • 200 gross horsepower Tier 4 Cummins Diesel Engine
  • Double rack-and-pinion thrust drive is field-proven and engineered to push/pull through long, tough bores.
  • Ditch Witch drill pipes are manufactured to be stronger and more durable than the competition. The JT60 All Terrain has drill pipes specially designed to withstand rock drilling forces so you keep your drills and business moving forward.
  • Proven, industry-leading pipe-loading system is simple, easy to use and designed to increase speed with automation, saving you time, money and effort.
  • Heavy-duty, planetary-driven anchor system enables you to use full machine thrust when needed, improving jobsite productivity.
  • Onboard, enclosed 150-gpm (560-l/min) fluid pump for productive drilling at greater distances. Flow rate can be operated simultaneously with thrust/pullback and rotation.
  • Two-speed thrust drive motors provide exceptional low-speed drilling control as well as the ability to reach the high speeds necessary for rapidly loading drill pipes.
  • Wireline platform option available.
  • Designed for greater uptime with a simple yet durable, customer-driven design.

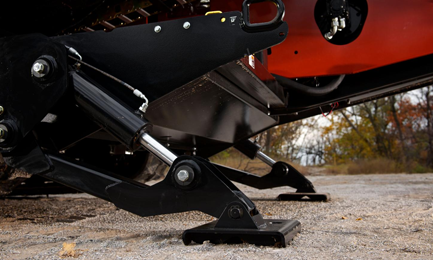

  • Dual rear independent stabilisers give you the confidence to set up on uneven terrain.
  • Wireless operation system provides you remote control of ground drive, stabilizers, dual pivot and stake down functionality allowing for more efficient jobsite setup.
  • Easy to service, with all daily maintenance points in one location that are easily accessed through removable doors.

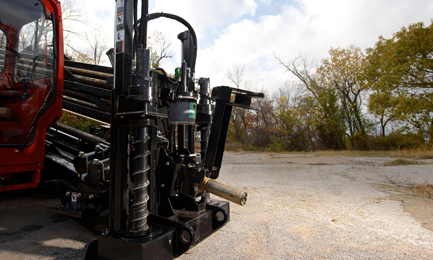

  • Open-top vise wrenches are angled toward the operator for an excellent view of the tool joint when making up and breaking out pipes.

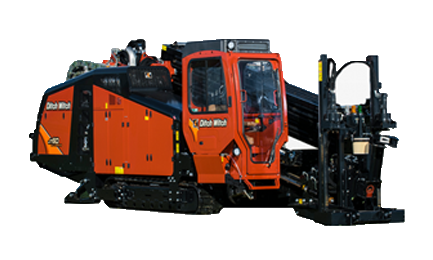

  • Fully enclosed, climate-controlled cab features instrument panel gauges positioned for visibility, with conveniently placed controls and an excellent view of the tool joint.
  • Dual-pivot drill frame allows steep entry angles without raising the tracks off the ground—no need to constantly readjust the machine even when the terrain is muddy or steep; operator station stays level for maximized comfort.

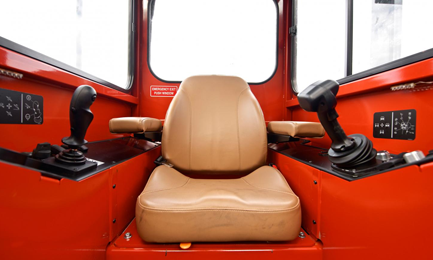

  • Operator’s station features an ergonomic seat, colour LCD engine display, excellent visibility, and an intuitive joystick that controls all drilling functions.
  • Your Ditch Witch equipment is backed by the best dealer in the industry, who you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, Ditch Witch UK has it all for you.
