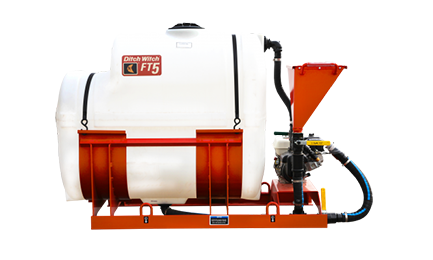

FT5 Fluid Transfer System

The compact FT5 makes short work of the mixing process. Simplicity of design and multiple configurations accommodate a variety of setups and make transport easy. Designed to support smaller HDD systems, the FT5 also supports your need to get the job done right and right on time.

Basic Specifications

  • Engine: 5.5hp Honda GX610 Petrol
  • Tank Capacity: 200 Gallons
  • Max. Flow Rate: 18gpm
  • Weight (Empty): 182kgs
  • Weight (Full): 939kgs
FM5 Fluid Management System

The compact FM5 makes short work of the mixing process. Simplicity of design and multiple configurations accommodate a variety of setups and make transport easy. Designed to support smaller HDD systems, the FM5 also supports your need to get the job done right and right on time.

Basic Specifications

  • Engine: 5.5hp Honda GX610 Petrol
  • Tank Capacity: 300 Gallons
  • Max. Flow Rate: 160gpm
  • Weight (Empty): 299kgs
  • Weight (Full): 1,435kgs
FM13V Fluid Management System

The FM13V fluid mixing system is designed to work a long time before requiring any of your attention. Its pump lubricates itself during mixing, and works so efficiently that it delivers 20 percent more fluid capacity than other models. To make your life easier, it even has a built-in bag-ripper.

Basic Specifications

  • Engine: 9.5hp Kubota Diesel
  • Tank Capacity: 500/1000/2000 Gallons
  • Max. Flow Rate: 270gpm
FM25 Fluid Management System

With its innovative line of fluid mixing systems, the Ditch Witch organization set the standards for efficiency in the HDD industry. The latest addition to this family is the FM25, a reliable, low-maintenance drilling fluid mixing system that makes short work of the mixing process.

Basic Specifications

  • Engine: 25hp Kubota D1105 Diesel
  • Tank Capacity: 500/1000/2000 Gallons
  • No. of Centrifugal Pumps: 2
  • Max Discharge Rate: 300gpm each
  • Max. Flow Rate: 200gpm each
MM30 Mud Mixing System

MM30 MUD MIXING SYSTEM

COMING SOON

Basic Specifications

  • Engine: 26.5hp Lombardini Diesel
  • Tank Capacity: 500/1000/2000 Gallons
FM50 Fluid Management System

FM50 FLUID MANAGEMENT SYSTEM

When you're mixing it up with the big boys, the high-volume, high-efficiency FM50 has the ideal blend of features you need to complete your HDD job. Each of the FM50's two 1000 gallon mixing tanks has its own pump, making it easy to deliver drilling fluid to your HDD units.

Basic Specifications

  • Engine: 53hp Kubota V3300 Diesel
  • Tank Capacity: 1000/2000 Gallons
  • No. of Centrifugal Pumps: 2
  • Max Discharge Rate: 300gpm each
  • Max. Flow Rate: 235gpm each
