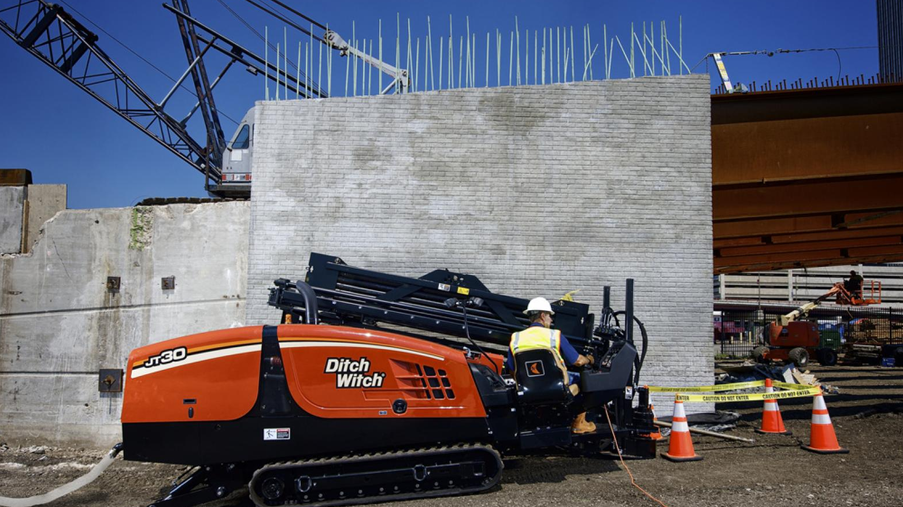

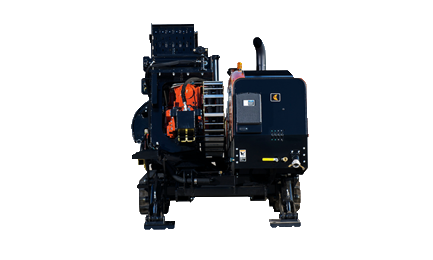

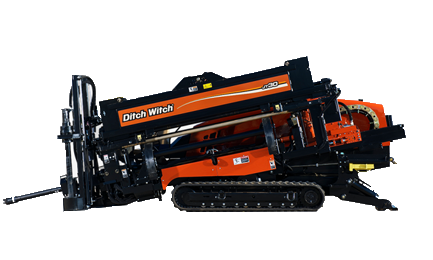

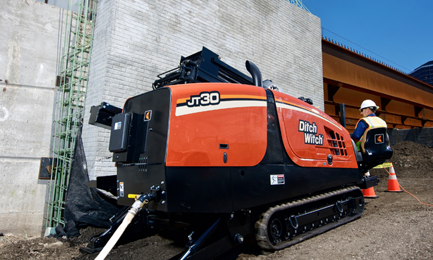

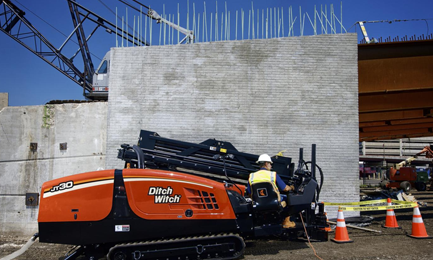

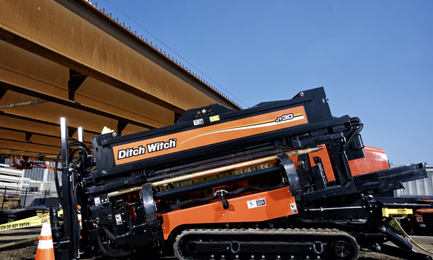

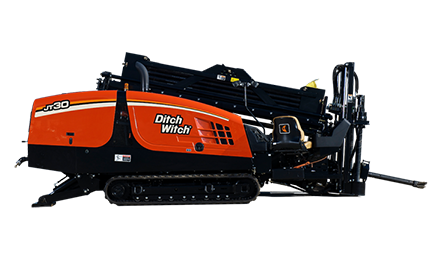

JT30 Directional Drill
JT30 Directional Drill
JT30 Directional Drill
JT30 Directional Drill
JT30 Directional Drill
JT30 Directional Drill
Download the JT30 Brochure »

Our customers wanted more power to perform all functions at once. Both the JT30 and its counterpart, the JT30 All Terrain, are the most powerful and quietest drills in their class—by a long shot. And both are products of direct customer feedback from years of experience in all types of job conditions. While we'd like to take all the credit for every innovative feature, we can't. But we will take full credit for being responsive to our customers' needs.

Basic Specifications

  • Engine: 130hp Cummins
  • Pullback: 13,390kgs
  • Rotational Torque: 4,000ft/lbs
  • Spindle Speed: 225rpm
  • Mud Pump: 50gpm at 42 Viscosity
  • 160-gross-hp, Tier 4 engine is the most powerful in its class; full power to all machine functions greatly enhances your overall productivity.
  • Equipped with 11,070kg of thrust and 13,390kg of pullback force for efficient installation in tough soils.
  • Automated, intuitive carve mode reduces operator fatigue and error and is compatible with industry-leading TriHawk® HD housings and bits for exceptional efficiency and productivity.
  • Heavy-duty anchor system enables you to push or pull with full machine thrust and depend on the JT30 remaining in place; better machine stability while drilling means a quick and more productive bore.
  • Industry-exclusive, double-pivot drill frame allows steep entry angles without raising the tracks off the ground—no need to constantly readjust the machine even when the terrain is muddy or steep.
  • Hinges on main and rear hoods allow easy access to all service points in the engine and mud pump; rear mud pump cover allows you to operate in colder conditions.
  • Exclusive assisted makeup and breakout feature: JT30 automatically adjusts speed when making up and breaking out drill pipe, saving wear on pipe threads and reducing operator fatigue.
  • Field-proven, heavy-duty rack and pinion thrust drive; welded-on double rack offers minimum maintenance and maximum reliability.
  • With a narrower width (80 inches/2 m, w/o cab) than the competition, the JT30 is a higher-horsepower drill that can operate in tighter spaces.
  • Advanced electronic system features improved diagnostics and customer-recommended electronic functions.
  • Visibility enhanced by open-top vise wrenches and improved operator station; wrenches are angled toward the drill operator for an excellent view of the tool joint when making and breaking pipe, and all drill functions are clearly visible from operator station, with or without cab.
  • Quietest directional drill in its class (max. 85 dBA operator sound pressure), so there’s less environmental impact, less disruption in urban areas and greater operator comfort.
  • Optional cab features climate-controlled heat and air, for greater operator comfort and productivity.
  • Your Ditch Witch equipment is backed by the best dealer in the industry, who you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, Ditch Witch UK has it all for you.
