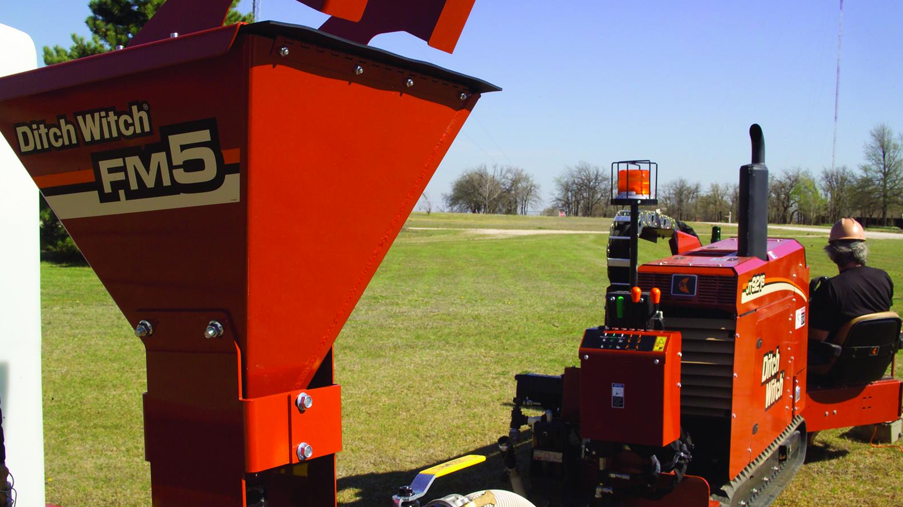

FM5 Fluid Management Systems
Download the Brochure »

The compact FM5 makes short work of the mixing process. Simplicity of design and multiple configurations accommodate a variety of setups and make transport easy. Designed to support smaller HDD systems, the FM5 also supports your need to get the job done right and right on time.

Basic Specifications

  • Engine: 5.5hp Honda GX610 Petrol
  • Tank Capacity: 300 Gallons
  • Max. Flow Rate: 160gpm
  • Weight (Empty): 299kgs
  • Weight (Full): 1,435kgs
  • Venturi wet hopper allows excellent mixing of fluids; the hopper's steeper sides help speed up mixing cycles.
  • Narrow tank can be positioned side-by-side with a drill unit on a trailer, making the equipment easy to transport to the jobsite.
  • Tank's sloping bottom ensures that all drilling fluid flows through the pump and is thoroughly mixed.
  • Flexible pump mounting offers a variety of setup configurations; pump delivers 160-gpm (606-l/min) flow.
  • Your Ditch Witch equipment is backed by the best dealer in the industry, who you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, Ditch Witch UK has it all for you.
